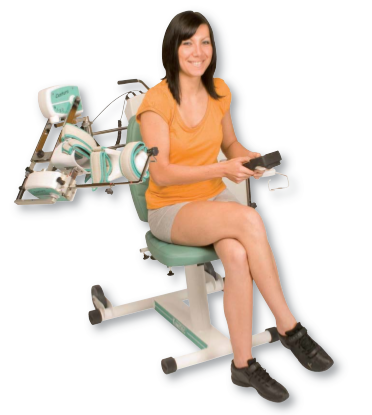

Kinetec Centura shoulder CPM

Kinetec Centura CPM machine is excellent product for shoulder rehabilitation. Provides post-operative passive range of motion. Prevents joint stiffness, soft tissue contractures and muscles atrophy. Patient set-up is comfortable and quick with a colour-coded set-up system. Programmable hand control allows pre-programming 16 different protocols. Easy change for right and left. Convenient transportation - breaks down; also includes a carrying case for detachable parts. Composed of 4 complementary and anatomical movements covering most of the shoulder pathologies including. Abduction/Adduction with synchronised rotation. and Shoulder Rotation -Shoulder Flexion/Extension.

The KINETEC CENTURA remote control features the latest USB technology that enables the use of the KINETEC DATA CAPTURE software and patient USBs to track patient progress and pre-program the patient rehabilitation protocol.

Key features

• Quality and number of movements
• Prevents joint stiffness, soft tissue contractures and muscles atrophy
• Synchronisation system
• Flexible and evolutionary machine
• Soft chair for patient comfort
• Portable and comes with handy carry case

Specification

• Patient sizing: from 1.4 to 2m
• Maximum user weight: 130kgs
• Load reverse ensures patient protection when excessive force is exerted on the joint
• Adjustment of the inversion force: 6 levels
• Possibility to block the adjustment of the parameters
• Resetting of the parameters when changing of the movement, to allow an incompatible range of motion with the patient condition
• Automatic movement (continuous) or manual
• Function detection of the maximum patient range of motion (manual mode or By-Pass mode)
• Adjustment of the session time: from 1 minute to 24 hours
• Pause in movement limit: from 1 second to 15 minutes
• Adjustment of the speed from 50 to 140° per minute (5 levels)
• Possibility of customisation and storage of 16 rehabilitation programs
• Dimensions: 56cm x 100cm x 76cm (variable height)
• Voltage: from 100 to 240Volts 50/60Hz
• Electrical power: 50 VA
• Warranty: 2 years
