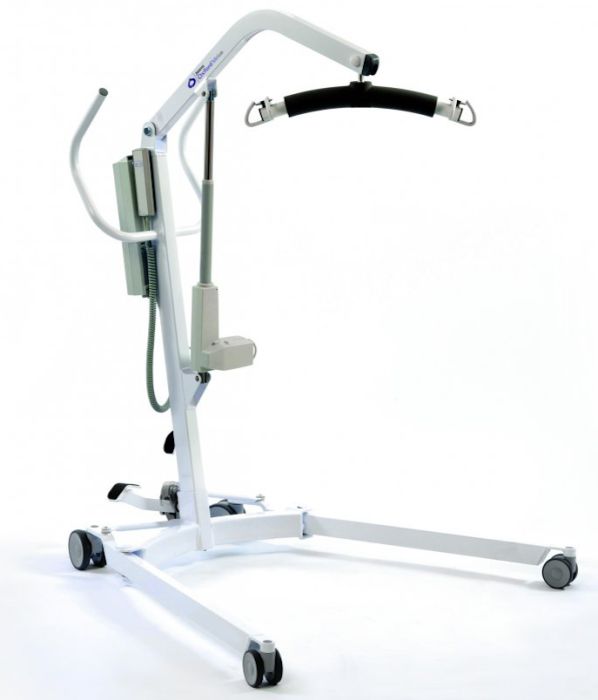

Oxford Mini 140 Hoist Electric

The Oxford Mini 140 is a compact yet exceptionally versatile, folding patient lifting hoist. It has been developed especially with the homecare environment in mind. This compact but highly durable patient lift offers superb manoeuvrability around the confines of domestic and nursing settings where space is at a premium.

Key features

• Safe working load 140kg / 22st / 309lbs
• Smart Monitor a state-of-the-art, on-board diagnostic tool providing invaluable operational and service data for both the user and service engineer
• Foot pedal leg opening mechanism with latch/lock functionality, the ergonomically designed foot pedal is perfectly positioned to ensure the user’s foot remains level during operation, helping to avoid risk of injury
• High-grade Tente castors for easy manoeuvrability, their highly durable design aids manoeuvrability over the majority of floor surfaces. The rear castors incorporate an easy to operate brake pedal
• Detachable battery pack and desktop charger
• Over-sized Push Handle for Optimised position and ergonomically designed for ease of manoeuvrability
• Emergency Descent which enables manually operated emergency descent function for increased patient safety.
• Optional Class III digital weigh-scale
• Standard spreader bar. Small & Large spreader bars available on request

Specification

• Safe Working Load 140kg / 22st
• Length 1175 mm
• Maximum Overall Height 1730 mm
• Minimum Overall Height 1230 mm
• Maximum Spreader Bar Height 1545 mm
• Minimum Spreader Bar Height 530 mm
• Spreader Bar Height at Maximum Reach 1000 mm
• Spreader Bar Reach at Maximum Height 420 mm
• Spreader Bar Reach at Minimum Height 400 mm
• Maximum Reach 565 mm
• Turning Radius 1150 mm
• Legs Open - External Width 1060 mm
• Legs Open - Internal Width 1000 mm
• Legs Closed - External Width 600 mm
• Legs Closed - Internal Width 540 mm
• Overall Height of Legs 100 mm
• Ground Clearance 25 mm
• Front Twin Castors 75 mm
• Rear Braked Castors 100 mm
• Mast and Boom Assembly Weight 5 kg
• Base Assembly Weight 11 kg
• Total Weight 5 kg
