DALMATIAN Invento Stander/Chair
Brand:
Akces Med -
View All Products
Product Code:
AKCES-DALMATIAN
The Dalmation Invento Stander / Chair is designed to enable the user to adopt the correct sitting and standing position. It also consists of a lying down func... read more
Description

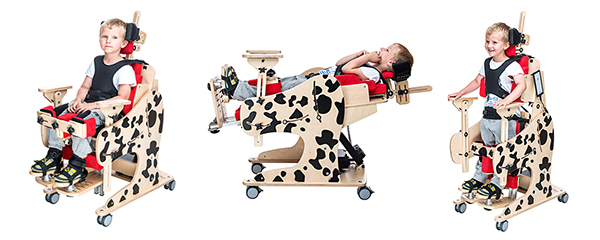

The Dalmation Invento Stander / Chair is designed to enable the user to adopt the correct sitting and standing position. It also consists of a lying down function. Equipped with a gas spring - therapists and carers can put the child in upright position without removing them from the chair. It includes a safety vest and pelvic belt with innovative “hold & pull" system which allows for quick and precise stabilisation of the child. Available 3 sizes and a range of colours.
Key features
- Frame with castors equipped with brakes
- Pneumatic spring
- Deep adjustable seat
- Removable and adjustable abduction block
- Knee support
- Backrest
- Hold & pull vest and pelvic belt
- Chest suport (size 1, 2)
- Independently adjustable pelvic and chest support (size 3)
- Head-rest
- Forearm supports
- Tray
- Independently adjustable footrest
- Innovative quadric mechanism
Recommended for the following conditions
- Cerebral palsy – various types and forms.
- Brain and spinal cord injuries
- Multiple Sclerosis
- Meningocele.
- Muscles diseases with weakness and paralysis
- Genetic disorders.
- Degeneration and neurological diseases.
- Conditions connected with muscles weakness, paralysis and musculoskeletal disorders.
- Head and spinal cord injuries and spine trauma with paralysis and paresis.
Technical
| Measurement | Unit | Size 1 | Size 2 | Size 3 | |
|---|---|---|---|---|---|
| A | Seat width | [cm] | 33 | 36 | 45 |
| B | Seat depth | [cm] | 17-26 | 20-31 | 28-44 |
| C | Backrest height | [cm] | 28 | 35 | 47 |
| D | Headrest height | [cm] | 40-60 | 47-71 | 54-77 |
| E | Backrest width | [cm] | 16-22 | 18-26 | 18-32 |
| F | Footrests length | [cm] | 18-37 | 18-40 | 18-51 |
| Knee supports spacing | [cm] | 18-26 | 21-29 | 25-37 | |
| Knee supports height | [cm] | 19-46 | 28-51 | 19-58 | |
| Footplate length | [cm] | 19 | 22 | 25 | |
| L1 | Abduction block adjustment (from backrest) | [cm] | 5-19 | 7-25 | 7-30 |
| Tray height | [cm] | 67-80 | 74-97 | 95-112,5 | |
| Stander tilt angle | [°] | 0-85 | 0-85 | 0-85 | |
| Tray tilt angle | [°] | 67-80 | 74-97 | 95-112,5 | |
| Backrest tilt angle | [°] | 0-90 | 0-90 | 0-90 | |
| Footrests tilt angle | [°] | 0-90 | 0-90 | 0-90 | |
| Maximum user weight | [kg] | 25 | 45 | 60 |
Dimensions
| Measurement | Unit | Size 1 | Size 2 | Size 3 |
|---|---|---|---|---|
| Width | [cm] | 46 | 50 | 60 |
| Length – chair function | [cm] | 70 | 81 | 97 |
| Height – chair function | [cm] | 96 | 118 | 138 |
| Weight | [kg] | 22.5 | 27.5 | 43 |
